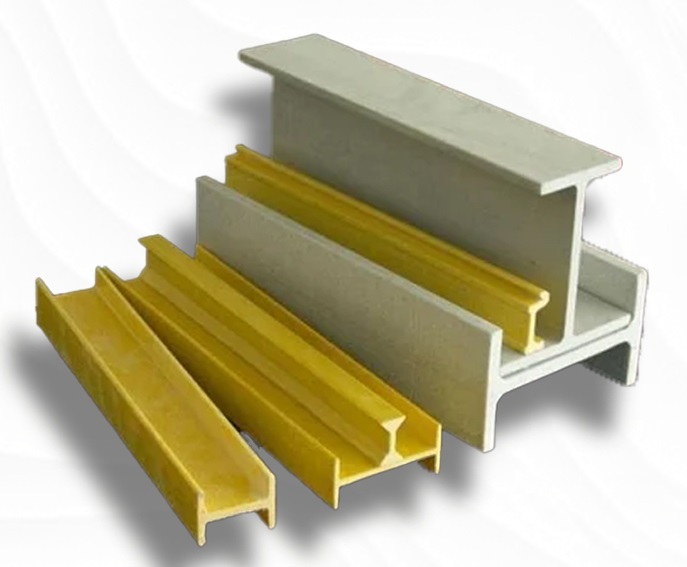

FRP Pultruded I Beam

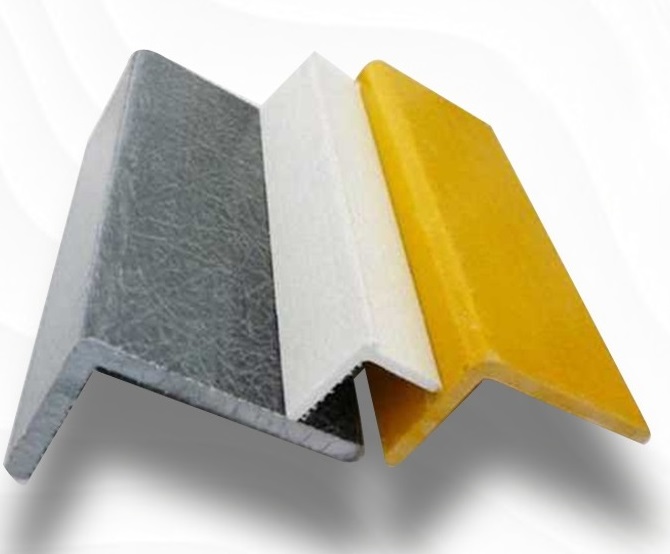

FRP Angle Profile
| Die (Mould) List | ||||
|---|---|---|---|---|
| Profiles | Weight(kg)/mtr | Profiles | Weight(kg)/mtr | |
| Box Type | Round | |||
 |
 |
|||
| 100x50x4mm | 1.52 | 33 mm ODx 6 mmThickness | 0.85 | |
| 50x50x3mm | 1.1 | 33 mm ODx 3 mm Thickness | 0.6 | |
| 50x50x5 mm | 1.7 | |||
| 50x25x3mm | 0.8 | 50 mm OD x 3.5 mm Thickness | 1 | |
| 75x45x6mm | 2.5 | 12 mm Groove Bar | 0.176 | |
| 100x100x6mm | 4.35 | |||
| m 2.1 12 mm Notch Bar 0.164 | 2.1 | 12 mm Notch Bar | 0.164 | |
| 25x25x3 (Rung) | 0.66 | |||
| 76x76x4mm | 2.15 | Flat | ||
| 50x50x6mm | 2.03 | 40x5 mm | 0.4 | |
| m1.37 100x5mm 0.965 | 1.37 | 100x5mm | 0.965 | |
| 60x40x5 mm | 1.76 | 150x8 mm | 2.31 | |
| 300x8 mm | 4.63 | |||
| 100x12x3 mm Kick Plate | 0.85 | |||
| 65x45x5 mm Top Rail | 1.66 | |||
 |
 |
|||
| 35x10x3 mm | 0.27 | |||
| 35x10x5 mm | 0.42 | L Angle | ||
| 50x50x3 mm | 0.86 | 50x50x6 mm | 1.06 | |
| 56x15x3 mm | 0.45 | 30x30x4mm | 0.46 | |
| 75x50x3 mm | 1 | 45x45x5 mm | 0.9 | |
| 83x13x3mm | 0.7 | 75x75x6 mm | 1.67 | |
| 80x30x3 mm | 0.8 | |||
| 100x50x3mm | 1.15 |
 |
||
| 106x15x3 mm | 0.7 | I Beam | ||
| 100x50x4 mm | 1.56 | 25x15x4 mm | 0.38 | |
| 100x30x4 mm | 1.24 | 38x15x4 mm | 0.47 | |
| 100x30x6 mm | 1.85 | 200x100x10 mm | 7.33 | |
| 156x15x3 mm | 0.95 | 152x76x6.35 mm | 3.63 | |
| 150x50x3mm | 1.45 | 100x60x6.5 mm | 2.59 | |
| 200x50x4 mm | 2.28 | |||
| 208x13x3 mm | 1.1 | |||
| 250x50x3mm | 2.04 | Deck panel | ||
| 300x50x3 mm | 2.3 | 638x38x3 mm | 5.8 | |
| 308x13x3 mm | 1.9 | |||
