FRP Cable trays supplier in Ahmedabad, Gujarat

FRP Cable Trays Supplier, manufacturer in Ahmedabad, Gujarat


FRP Cable trays supplier in Ahmedabad, Gujarat

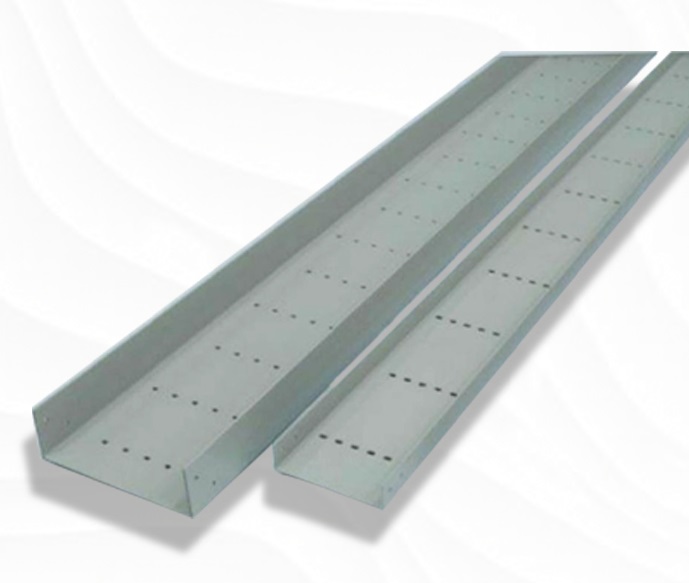

Aangi Advanced Composite Pvt. Ltd., We are an excellent range of FRP Cable Trays supplier in Ahmedabad, Gujarat. These cable trays are manufactured with the aid of cutting edge techniques using high quality fiber-reinforced plastic under the vigilance of our professionals. FRP cable trays are made using high quality pultruded material which can withstand any environment or chemicals. These are generally used for the installation of power cables and control cables. Other features that make FRP cable trays unique and more reliable are its fire redundant, lightweight, strength and durability characteristics. Structural stability, dimensional accuracy and excellent finish are some of the features that distinguish our FRP Cable Trays from others in the market. It is available with & without covers. We provide FRP Cable tray system that find rigid Fire Retardant with some benefits as Anti Corrosion, Max Strength, No Earthing, Electrical Insulation, Low Thermal Conductivity, etc.
  • Ladder-type
  • Perforated type &
  • C - Type
Options are available in cable trays. FRP Cable trays are attractive in design, elegant and lighter in weight than Steel Cable trays. It meets the requirements of NEMA (National Electric Manufacturers Associations) and UL (Underwriters Laboratories, Inc).
TECHNICAL SPECIFICATION

Side FRP Pultruded 'C' , 'E' & 'I' Section
Rung FRP Sq. Hollow tube/Unistrut/Flat
Length of Cable Trays 2 mtr, 3 mtr & 6 mtr
Width of Cable Trays 100/150/300/450/600/750/900 (in MM)
Rung Spacing 250mm / 300 mm
Radius Fittings 300mm / 600 mm
Material of Side Rail and Rung Corrosion Resistance Polyester-Isopthelic / Vinyl ester, Flame Retardant UV stabilized resin system and Glass fiber (Min glass content 50 to 60%)
Applications:

  • Chemical plants
  • Power plants
  • Effluent Treatment plant
  • Offshore/Onshore Platforms
  • Paper Plants
  • HVAC Application
  • Refineries and etc...
Features/Advantages:

  • Corrosion resistance
  • Fire Retardant
  • Light Weight
  • Good UV Stabilities
  • Long Life
  • High Impact Strength & durable
  • Non-magnetic
  • Non-conductive (Electrical & Thermal)
  • Non-cracking
  • Non-sparking
  • Chemical Resistance
  • Interlocking assembly's
  • Low maintenance cost
