FRP Moulded Grating

Home FRP Moulded Grating

FRP Molded Gratings Manufacturer

FRP molded grating is a type of grating made from Fiber Reinforced Polymer (FRP) a composite material consisting of fiberglass strands embedded in a resin matrix. It's designed for strength, corrosion resistance, and safety, making it suitable for various industrial and commercial applications. FRP molded grating is made by combining fiberglass rovings with a thermosetting resin, typically polyester or vinylester.

Our FRP Molded Gratings are manufactured using high-grade resin systems and continuous glass fibers, offering excellent chemical resistance, slip protection, and impact tolerance. These gratings are ideal for industrial flooring, walkways, trench covers, platforms, and stair treads in industries such as chemical processing, marine, wastewater treatment, power plants, and food processing. Available in various mesh sizes, thicknesses, and colors, AACFRP’s gratings meet global safety and load-bearing standards.

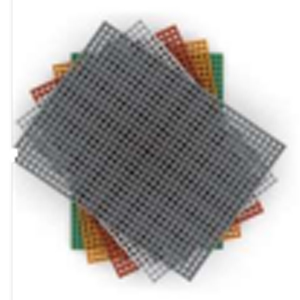

FRP Moulded Gratings
Advantages
  • Cost savings
  • Reduces carbon footprint
  • Low maintenance costs
  • Reduction in electricity bills
  • Suitable for Indian climate
  • No additional space required for installation
Features
  • superb hydraulic potency
  • High endurance and strength
  • Custom created
  • Reasonable style
  • Durable
  • Low thermal and electrical conduction
Technical Data Sheet
Rib Thickness 5 to 7 mm
Height 20,30,38,40 mm
Pitch 38*38 mm
Panel Size 1220*3660 mm
MOC Glass Fibre E-glass, Polymers
Length width Height Pitch Weight Panel Weight
1220 mm 3660 mm 25 mm 38*38 mm 12.5 kg/m 2 55.81 kg/m 2
1220 mm 3660 mm 30 mm 38*38 mm 14.5 kg/m 2 64.74 kg/m 2
1220 mm 3660 mm 38 mm 38*38 mm 18.5 kg/m 2 82.60 kg/m 2
1220 mm 3660 mm 40 mm 38*38 mm 19.0 kg/m 2 84.83 kg/m 2
Tolerance Length Width Height weight
+1/-4 mm +1/-4 mm +2/-2 mm +10/-10%
Content Resin Approx. 68%
Glass Fibre Approx. 32%
Futher Indications:
FRP Gratings are UV resistant.
Fire Classification B2 (normal ignition acc. to DIN4102 part 1)
The FRP Gratings have a resistance of conductive discharge of 1.098 *10 -17m/ohm*mm 2
FRP Gratings
ADVANTAGES USAGE
Corrosion Resistant Residential & Commercial Buildings
Bi-directional strength Chemical Plants
Slip Resistant Refinery
Low maintenance Food & Pharma industries
High strength to Weight ratio Mining
Fire Retardant Air & Water Pollution Control Plants
LightWeight Swimming Pools
Impact Resistant Walkways & Bridges
Long Service Life Fencing & Signboards
Superior Ergonomics Loading Platforms
Electrically and Thermally Non-Conductive Mezzanine floors
Low installation Cost Trench Covers
Available in Many Sizes & Colours General Manufacturing industries

FAQ

What are FRP Moulded Gratings?

FRP Moulded Gratings are fiber-reinforced plastic grates manufactured using a molding process. They are corrosion-resistant, non-conductive, lightweight, and ideal for industrial flooring, walkways, platforms, and chemical plants.

Where are FRP Moulded Gratings typically used?

These gratings are commonly used in:

Chemical processing plants

Marine and offshore platforms

Wastewater treatment facilities

Power plants

Walkways, trenches, and stair treads

Are FRP Moulded Gratings available in different sizes and colors?

Yes, they are available in various panel sizes, thicknesses, mesh patterns, and colors such as green, yellow, grey, and custom shades to suit different applications.

Can FRP Moulded Gratings be customized?

Yes, Aangi Advance Composite offers customizable designs, colors, and sizes to meet specific project requirements.
